Description

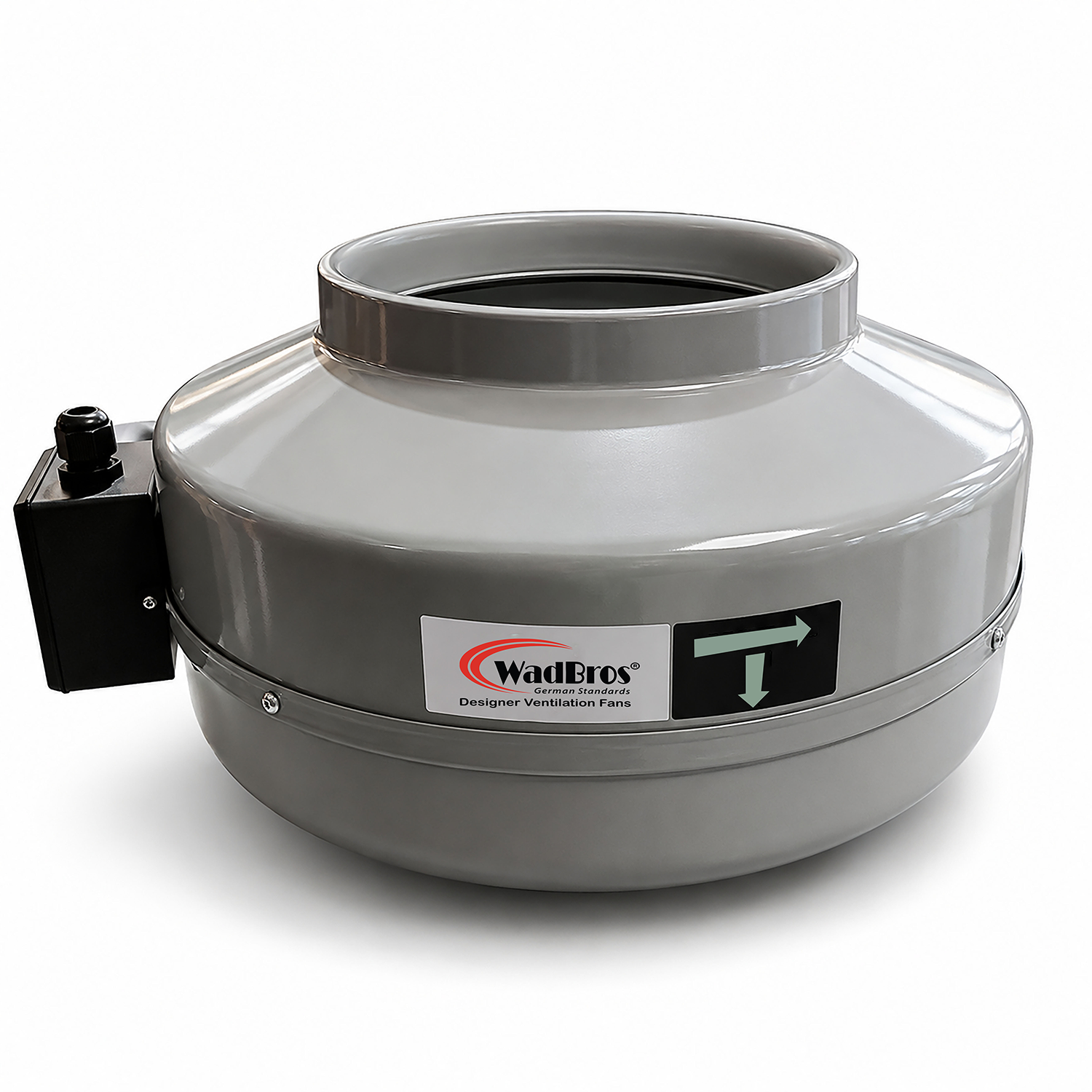

Wadbros IL-M Series is a centrifugal inline duct fan designed to deliver high suction capacity with high static pressure. It features a durable external rotor motor for reliable and rugged performance. Ideal for applications requiring high airflow through longer ducts and systems with higher duct resistance. Its large impeller design enables efficient operation even in environments with heavy particulate air, such as industrial spaces.
| Model | A | B | C | D | E |
| IL-M 10 | 202 | 97 | 23 | 287 | 240 |
| IL-M 15 | 226 | 147 | 25 | 373 | 333 |
| IL-M 20 | 224 | 197 | 26 | 373 | 333 |
| IL-M 31 | 233 | 315 | 25 | 441 | 401 |
| IL-M 35 | 410 | 350 | 35 | 545 | 505 |
| IL-M 40 | 410 | 395 | 35 | 545 | 505 |
| Model | Fan Size (mm) | Rated Voltage (V) | Rated Frequency (Hz) | Rated Power (W) | Airflow (m³/h) | Noise dB (A) | RPM | MRP |
|---|---|---|---|---|---|---|---|---|
| IL-M 10 | 100 | 220 – 240 | 50 – 60 | 26 | 200 | 30 | 2450 / 1800 | 8790/- |
| IL-M 15 | 150 | 220 – 240 | 50 – 60 | 50 | 500 | 35 | 2600 / 2080 | 10590/- |
| IL-M 20 | 200 | 220 – 240 | 50 – 60 | 70 | 850 | 50 | 2500 / 2050 | 14090/- |
| IL-M 25 | 250 | 220 – 230 | 50 – 60 | 175 | 1600 | 60 | 2500 | 28290/- |
| IL-M 31 | 315 | 220 – 240 | 50 – 60 | 280 | 2500 | 66 | 2500 | 44790/- |
